Gabion Basket

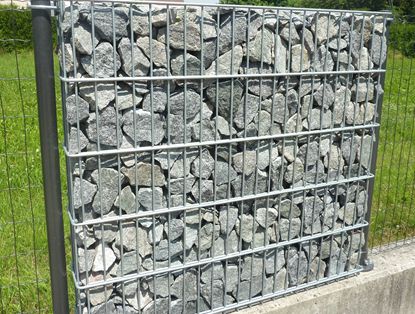

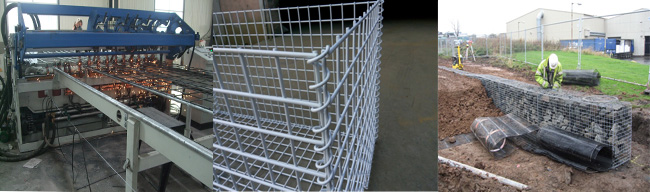

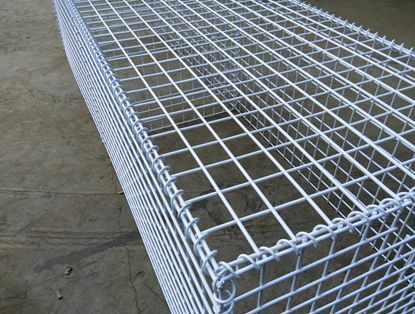

1,-Welded Gabion

Welded Mesh Gabions are manufactured from Pre commercial gal wire or Hot dipped galvanized after welded.

Wire dia,4mm 5mm 6mm

Hole Aperture: 50*50mm 50*100mm 100*100mm

Finish Treatment: powder coating or zinc coating

Diaphragms: 1

Reference Size:

2mx1mx1m,

1mx1mx1m,

1mx0.5mx0.5m

100*30*100cm

100*30*50 cm

100*30*80 cm

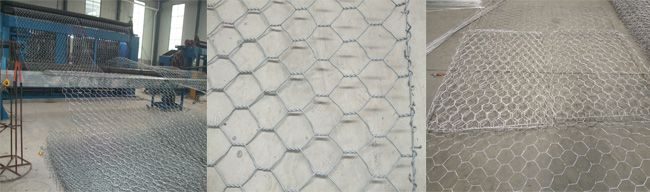

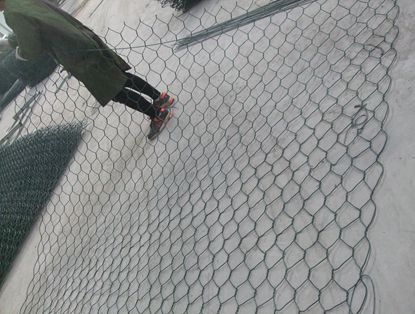

2,-Woven Gabion

We also can supply woven gabion basket,rock mattresses in green,gray color pvc coated, galvanized wire material.tensile strength 400-550Mpa, size could be 60*80mm 80*100mm x 2.7/3.2mm , other size could be customized.

It comes from a double twisted hexagonal mesh of steel wire, reinforced by heavier gauge wire along the edges and internal diaphragms.

Reference Specification:

1m x 1m x 1m

1m x 0.5m x 0.5m

1m x 1m x 0.3m

2m x 1m x 1m

2m x 1m x 0.5m

2m x 1m x 0.3m

3m x 1m x 1m
